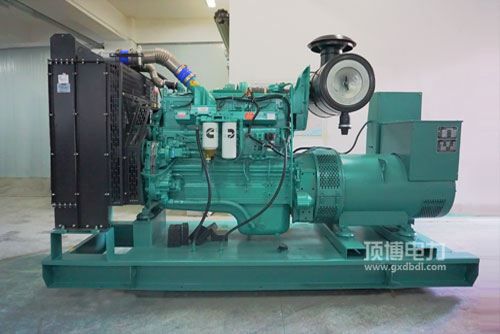

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用起动因汽柴油机系统性可靠性性好: 现进的汽柴油调控机系统性，独立拥有的STC、ESTC 分级管理调控机系统性，特殊的设计的火塞顶端烧燃物室，超高压喷洒于汽柴油，做好吸雾，烧燃物做好。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用汽车发倾向瞬态稳定性高品质: 好的汽车发倾向整体布局设计构思，紧密配合康明斯与众不同的EFC装置，设定精度等级高，死机精力快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用汽车发驱动力升输出功率高: 产品 设置密集.性能设计合理合法，进行平缓。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机种 QSNT. QSK19. QSK38. QSK50考虑全球非道路交通第三步阶段中，及美洲Tier2. Tier 3排卸法规标准条件。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具必须性好， 起行为操作及养护护肤保养便民，制造费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

效率面积 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状长度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净質量 Dry Weight   940kg

224-310KW康明斯发电机组用发起机的共同点：体积大小小， 压缩的变高， 格栅板新鲜空气进行加热，更能初始化，中移动车载影音电源开关的好选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发倾向款型	最常用热效率(kW)Prime Power	紧急工作效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
